Elektron Analog Four MKII – 4-Voice Analog Synthesizer with Sequencer

The Elektron Analog Four MKII is a powerful tabletop analog synthesizer offering four independent voices with deep sequencing and full analog signal path. Its rugged metal design, precise controls, OLED display, and CV/Gate outputs make it ideal for studio sound design, performance workflows, and hybrid modular setups—expertly presented by Soundium.

Key Features

• True analog signal path: Two analog oscillators per voice (each with sub-oscillator and PWM), plus digital control over pitch and modulation.
• Dual analog filters: 4-pole ladder plus 2-pole multimode filter per voice, including analog overdrive.
• Deep modulation: Two assignable envelopes and two hi-res LFOs per voice, with additional vibrato and fade envelopes available.
• Synthetic flexibility: Four-voice polyphony, unison, arpeggiator, plus full multitimbral sequencing across four tracks.
• Effects and send FX: Integrated delay, reverb, chorus, and drive effects via a dedicated FX track.

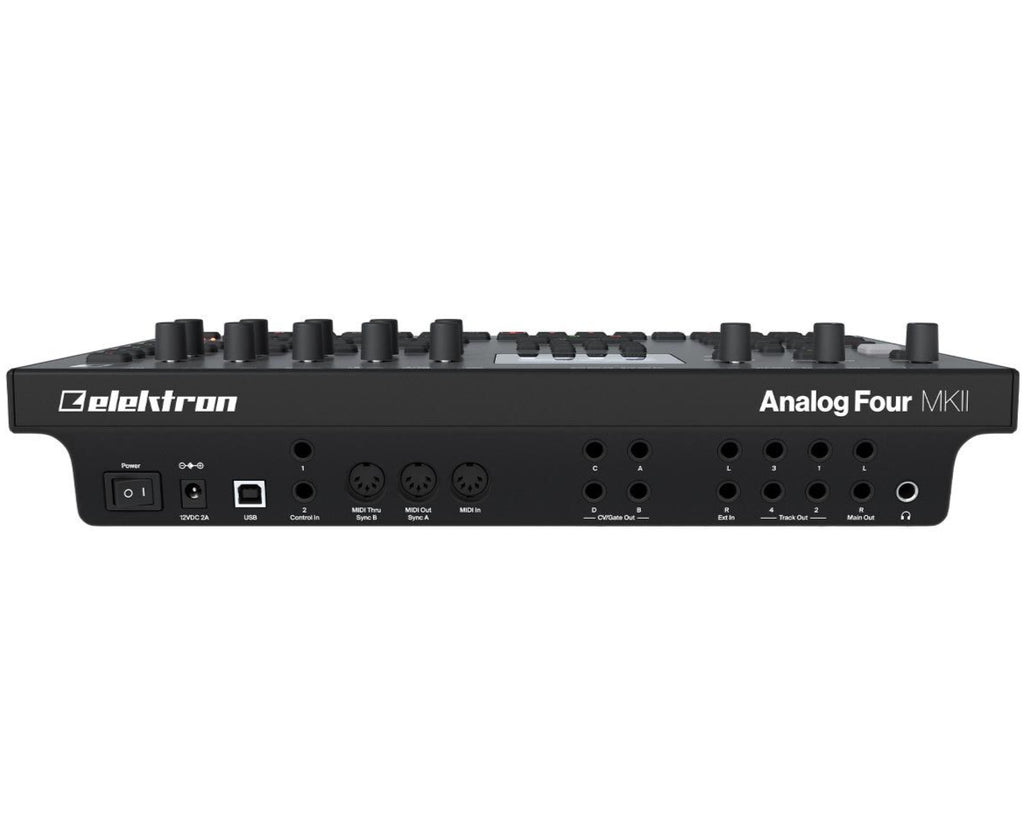

• Extensive connectivity: Balanced main outputs, individual voice outputs, CV/Gate outputs, audio inputs, expression CV inputs, headphone out, USB audio/MIDI (Overbridge enabled), and MIDI DIN I/O with DIN Sync.

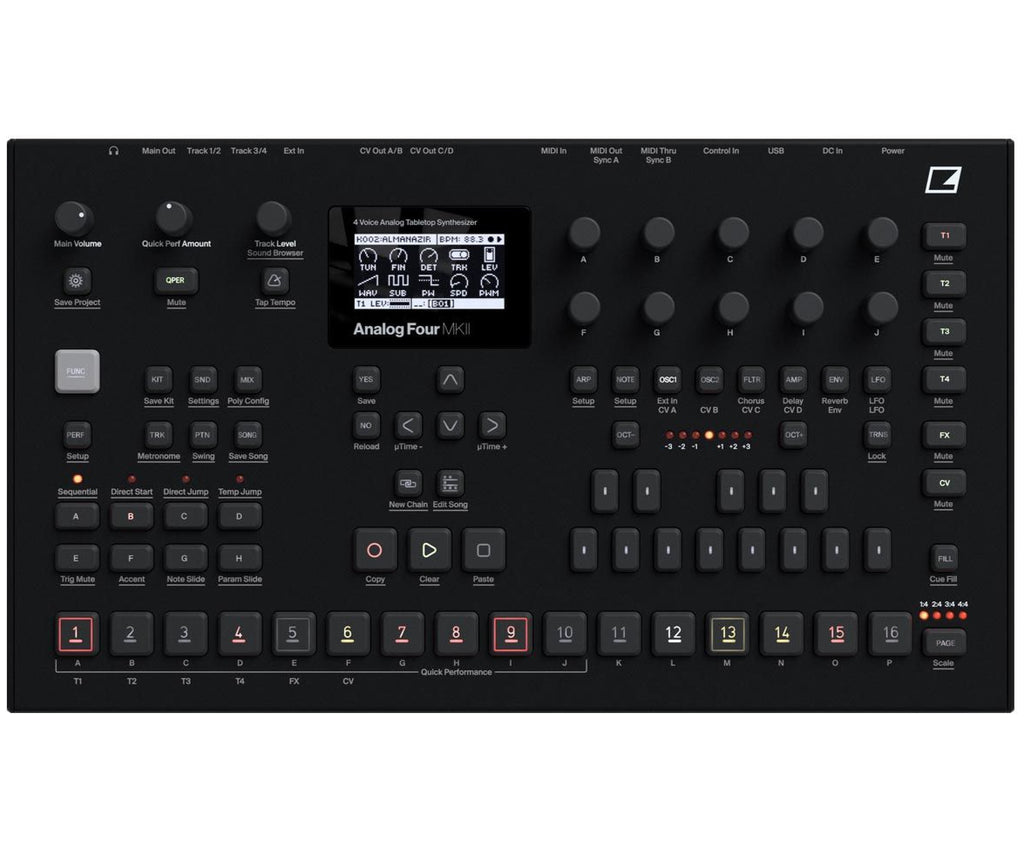

• Performance interface: Durable cast-aluminum chassis, 128 × 64 OLED display, illuminated and long-life buttons, plus hi-res encoders.

Customer Benefits

The Analog Four MKII delivers rich analog warmth with sequencing precision. It’s perfect for crafting evolving pads, sharp basses, and rhythmic sequences—all while staying tightly synced with modular gear or DAWs via USB or CV. Designed for durability, it excels in both studio creation and live performance.

Quick Specs

• Voices: 4 analog voices, polyphonic and unison modes
• Filters: Ladder and multimode analog filters per voice + overdrive
• Modulation: Envelopes and LFOs per voice, plus vibrato/fade options
• Effects: Delay, reverb, chorus via FX track
• Sequencer: 6 tracks (4 synth, 1 FX, 1 CV/Gate), with parameter locks, arpeggiation, track lengths, scene switching, and micro-timing
• Connectivity: Main stereo outs, individual voice outs, CV/Gate outs, audio inputs, expression/CV in, USB audio/MIDI, MIDI I/O, DIN Sync
• Display: 128 × 64 OLED

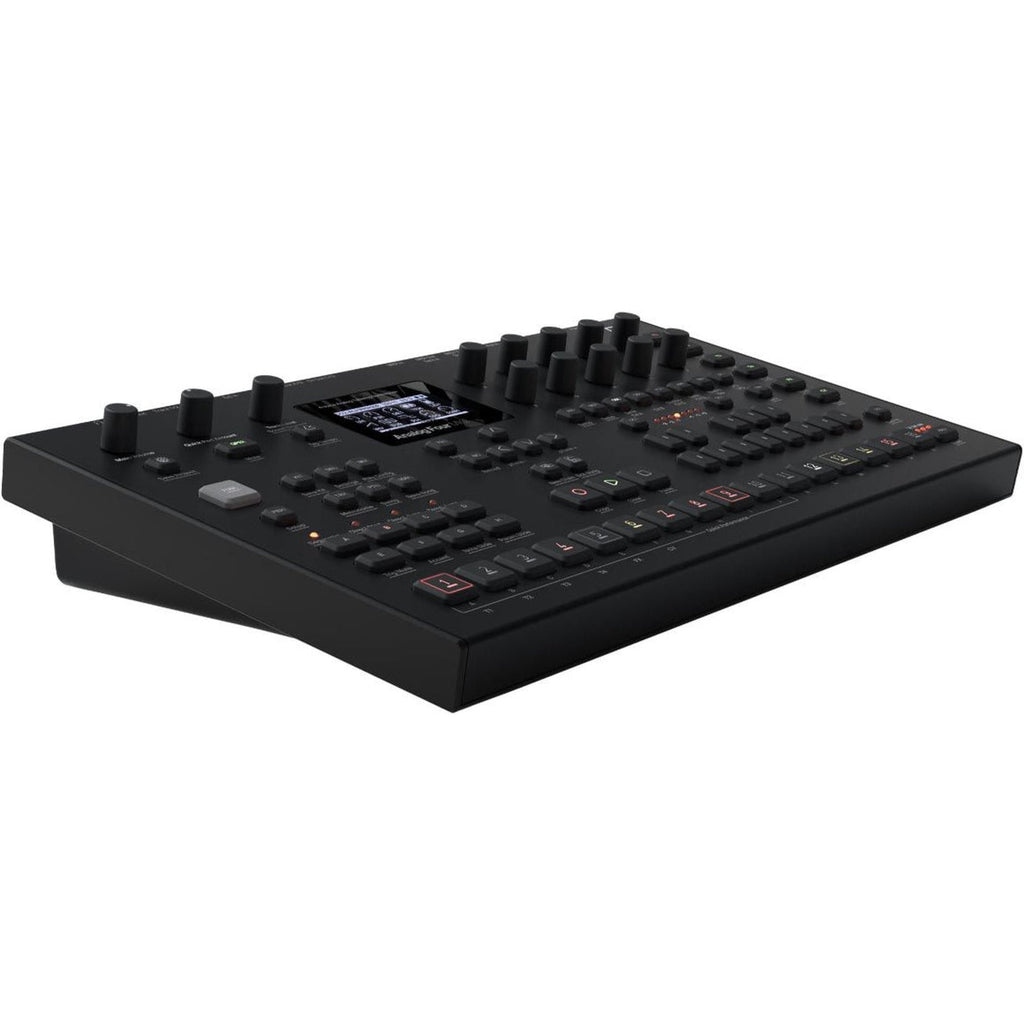

• Build: Cast-aluminum chassis with angled front panel
• Dimensions: 38.5 × 22.5 × 8.2 cm (W × D × H including knobs & feet)
• Weight: Approx. 2.4 kg
• Power consumption: ~15 W typical, 20 W max; uses 12 V DC, 2 A power supply

What’s in the Box

• Elektron Analog Four MKII unit
• PSU-3c power supply
• USB cable
• Documentation & quick start guide

Use Cases / Ideal For

Ideal for analog synth lovers, sound designers, and electronic musicians. Use it as a standalone analog synth, sequencer for external gear via CV/Gate, or integrate with your DAW through USB and Overbridge for seamless multitrack recording and editing.

Compatibility

USB class-compliant audio/MIDI and Overbridge support ensure deep DAW integration. CV/Gate and MIDI connections allow easy use with modular systems or vintage gear. Fully compatible with projects from the original Analog Four.

Pros & Cons

✅ Pros:

• Rich, expressive analog sound with digital precision
• Extensive connectivity and performance sequencing
• Sturdy metal design built for touring

⚠️ Cons:

• Steep learning curve for Elektron sequencing workflow
• Physically larger and heavier than compact grooveboxes

Elektron Analog Four MKII delivers analog synthesis, sequencing power, and connectivity flexibility in one refined package—crafted for creativity with Soundium.
