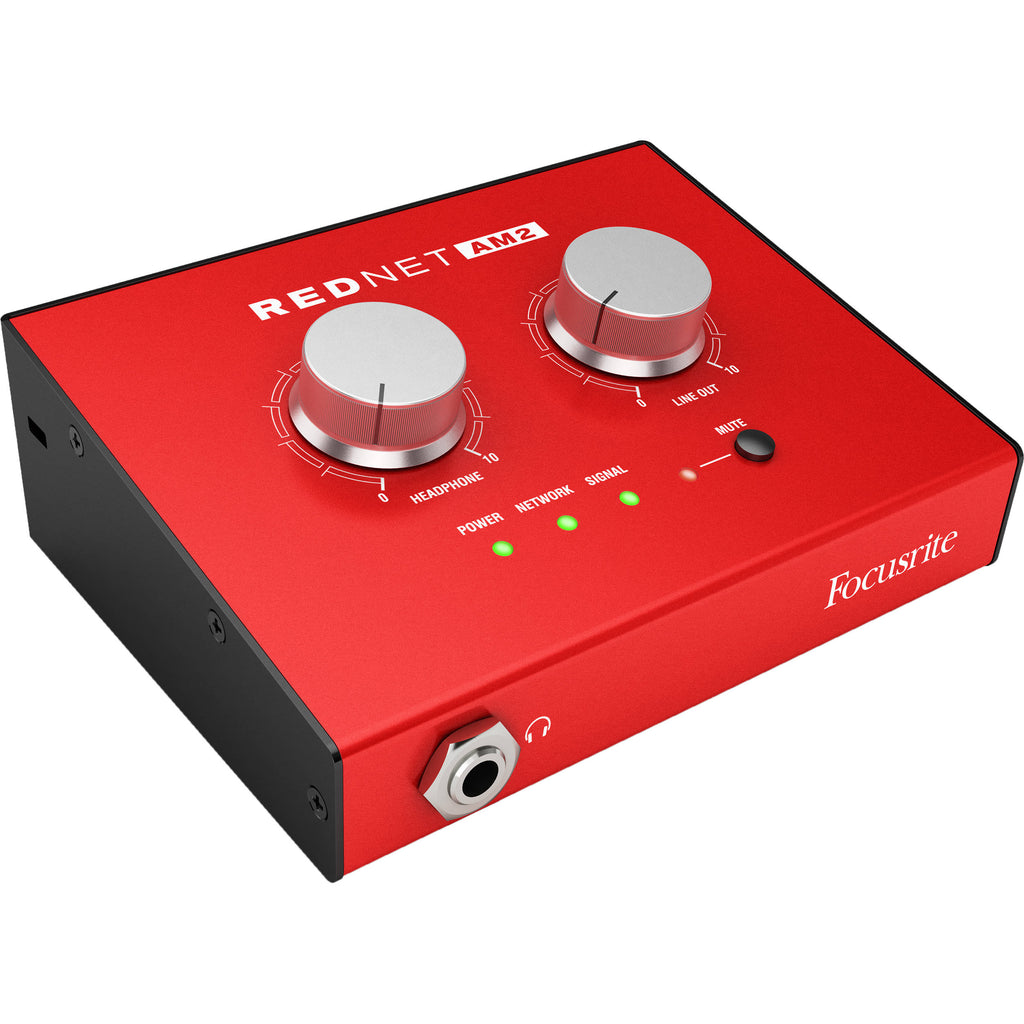

Focusrite RedNet AM2 – Dante-Powered Stereo Monitoring & Headphone Hub

RedNet AM2 brings clean, flexible monitoring to any Dante audio-over-IP setup. With high-fidelity Dante-to-analogue conversion, headphone and balanced line outputs, and power via PoE or DC, it’s the perfect desk or stage companion—adding pro-grade audio monitoring wherever you need it at Soundium.

Vigtigste funktioner

• High-quality Dante stereo receiver: Pristine Dante-to-analogue conversion, delivering 24-bit/96 kHz audio with over 118 dB dynamic range via XLR or headphones
• Power-over-Ethernet plus DC power: Single cable for audio, power, and control, or use the included 12 V DC supply for greater flexibility

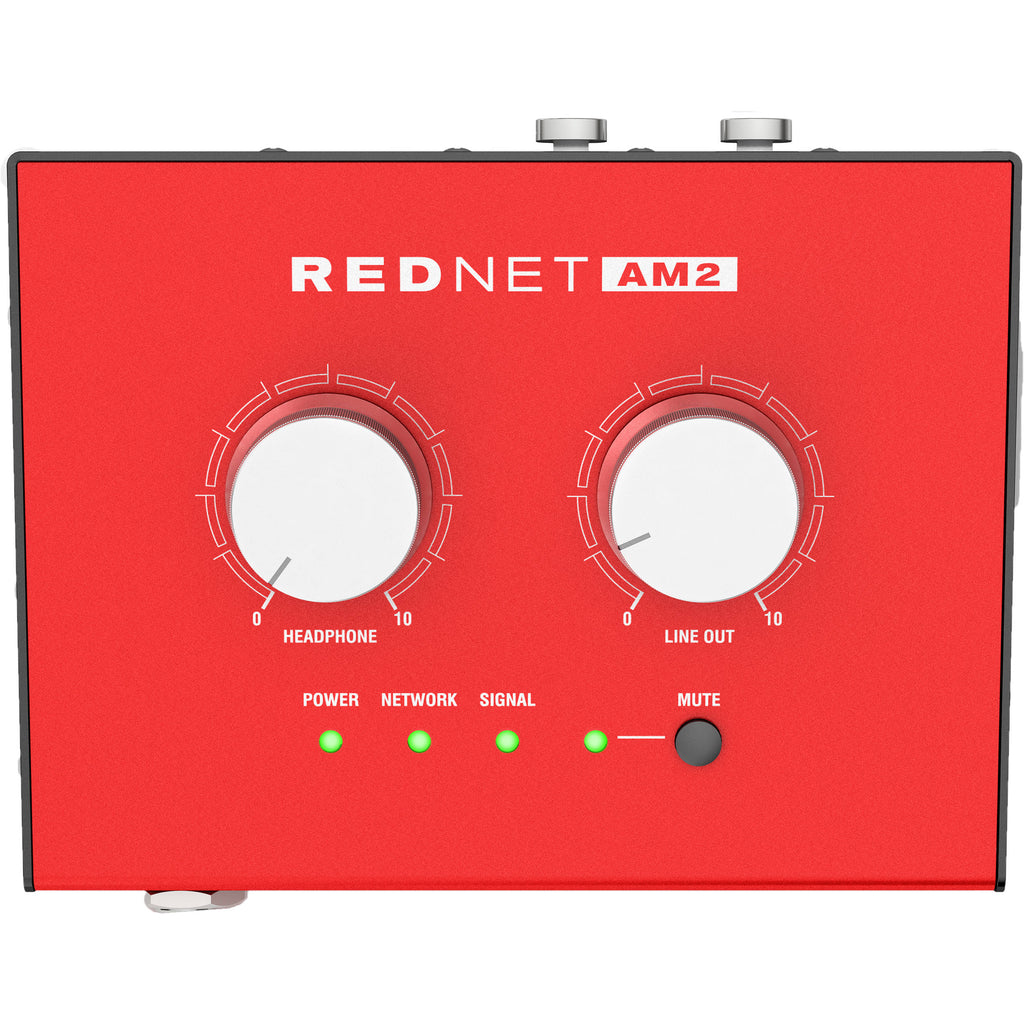

• Independent level control: Large top-panel knobs for headphone and line/output, plus a mute button with LED for safe speaker cut-off

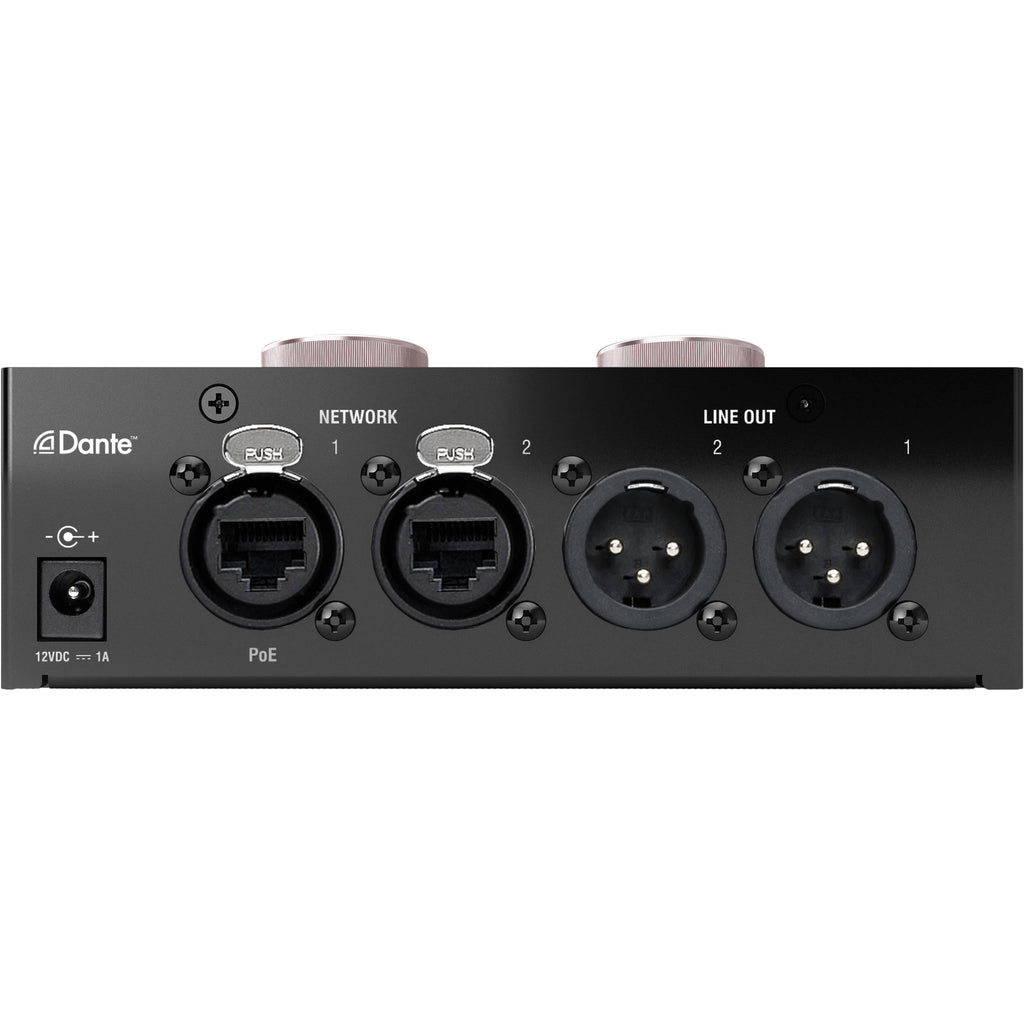

• Integrated network switch: Two etherCON ports let you daisy-chain devices—ideal for cleaner setups and easier routing
• Rugged aluminum chassis with mic-stand mount: Road-ready build with non-slip feet and a 3/8″ threaded base for flexible placement
• Status indicators: LEDs for power status (PoE vs DC), network connectivity, and signal levels (red/orange/green) for instant visual feedback

Fordele

Whether you're mixing on headphones or passive speakers, RedNet AM2 adds immediate, high-fidelity monitoring—perfect for Dante studios, broadcast booths, or stage setups. PoE simplifies cabling, and the mute switch protects listening environments. With intuitive controls and rugged design, it’s a plug-and-play pro solution for delivering critical audio where you need it.

Hurtige specifikationer

• Dante I/O: 2-channel Dante receiver with dual EtherCON (GbE), integrated network switch

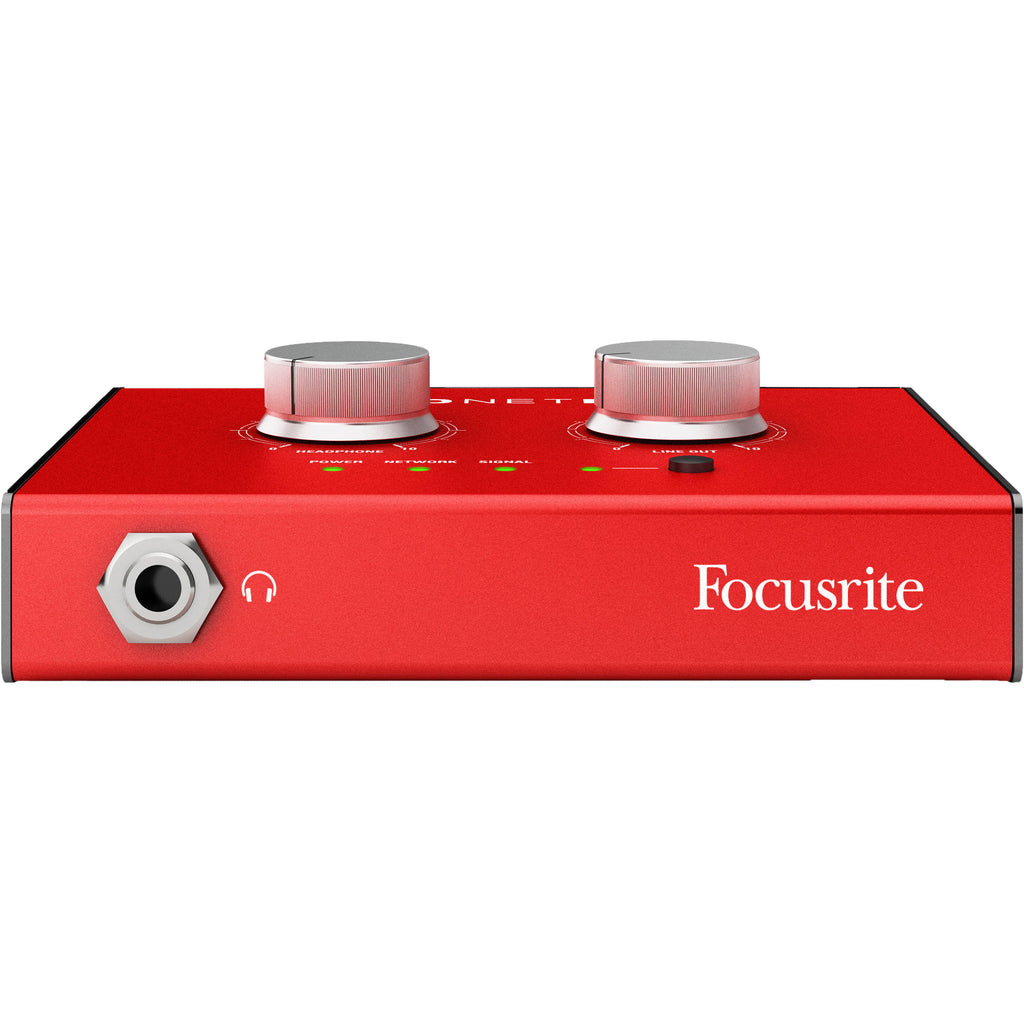

• Headphone Output: ¼″ stereo TRS, 19 dBm reference, drives 32–600 Ω cans, dynamic range ≈118 dB
• Line Outputs: 2 × XLR, switchable reference levels: +18 or +24 dBu, dynamic range ≈120 dB, 20 Hz–20 kHz ±0.05 dB
• Kontroller: Independent volume knobs for headphones and line; mute button with LED; signal and network status LEDs
• Clocking: Internal clock or Dante network master
• Power: PoE (IEEE 802.3af Class 0, ~11 W) or included 12 V DC adapter (~9.8 W)
• Dimensioner: approx. 140 × 106.5 × 48 mm
• Vægt: approx. 0.81 kg

What’s in the Box

• RedNet AM2 desktop monitoring unit
• 12 V DC power supply
• Power-over-Ethernet capability (PoE)
• Hurtigstartsguide

Anvendelsesområder

Ideal for Dante-equipped studios, broadcast booths, live performance setups, or location stages where clean headphone or speaker monitoring is needed without extra gear. Perfect for use as a compact monitor hub in control rooms, FOH desks, or streaming station setups.

Kompatibilitet

Works seamlessly within Dante audio-over-IP networks, fully controllable via Dante Controller software. Provides analogue outputs that integrate with any standard monitoring chain. PoE or DC options offer setup flexibility for live, studio, or mobile applications.

Fordele og ulemper

✅ Fordele:

• High-precision Dante-to-analogue monitoring in headphones and speakers
• PoE reduces cable clutter; DC option adds flexibility
• Compact yet rugged, easily mounted or desk-placed
• Mute button offers immediate control over speaker output

⚠️ Ulemper:

• Only provides Dante receive—no local analog inputs for mixing
• Requires Dante network infrastructure (software and network knowledge necessary)
• No display or onboard mixing—pure monitoring interface

RedNet AM2 puts powerful Dante stereo monitoring in a rugged, compact package. It’s the smart, minimal solution for pro-grade monitoring wherever your network takes you—only at Soundium.
