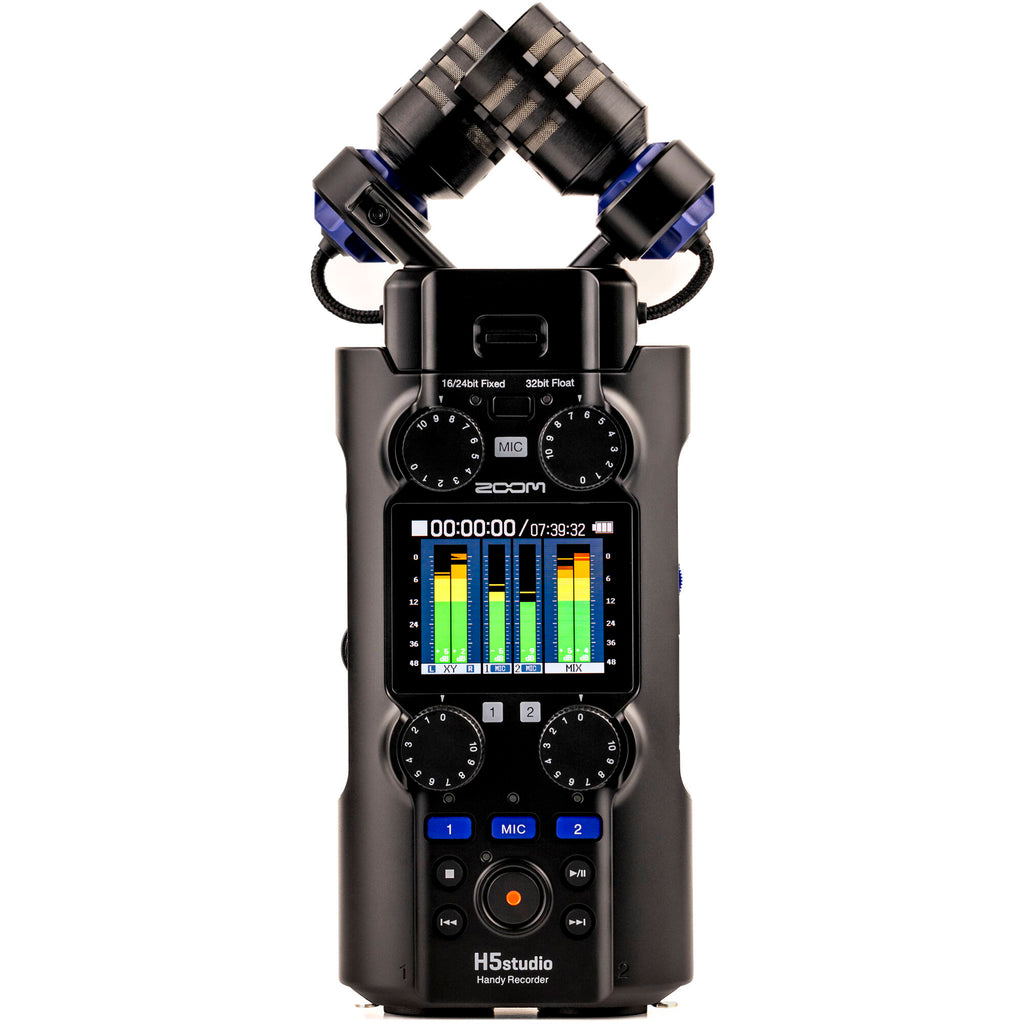

Zoom H5studio – Advanced 32-bit Float 4-Track Portable Recorder

The Zoom H5studio brings studio-grade audio to a handheld format with 32-bit float recording, large XY condenser mics, and flexible multitrack capture. With swappable capsules, high-headroom preamps, and USB audio-interface mode, it’s a powerful tool for filmmakers, podcasters, and content creators—ready to deliver reliable results with Soundium.

Key Features

• 32-bit float recording: Capture from whispers to loud concerts without clipping or gain fuss.

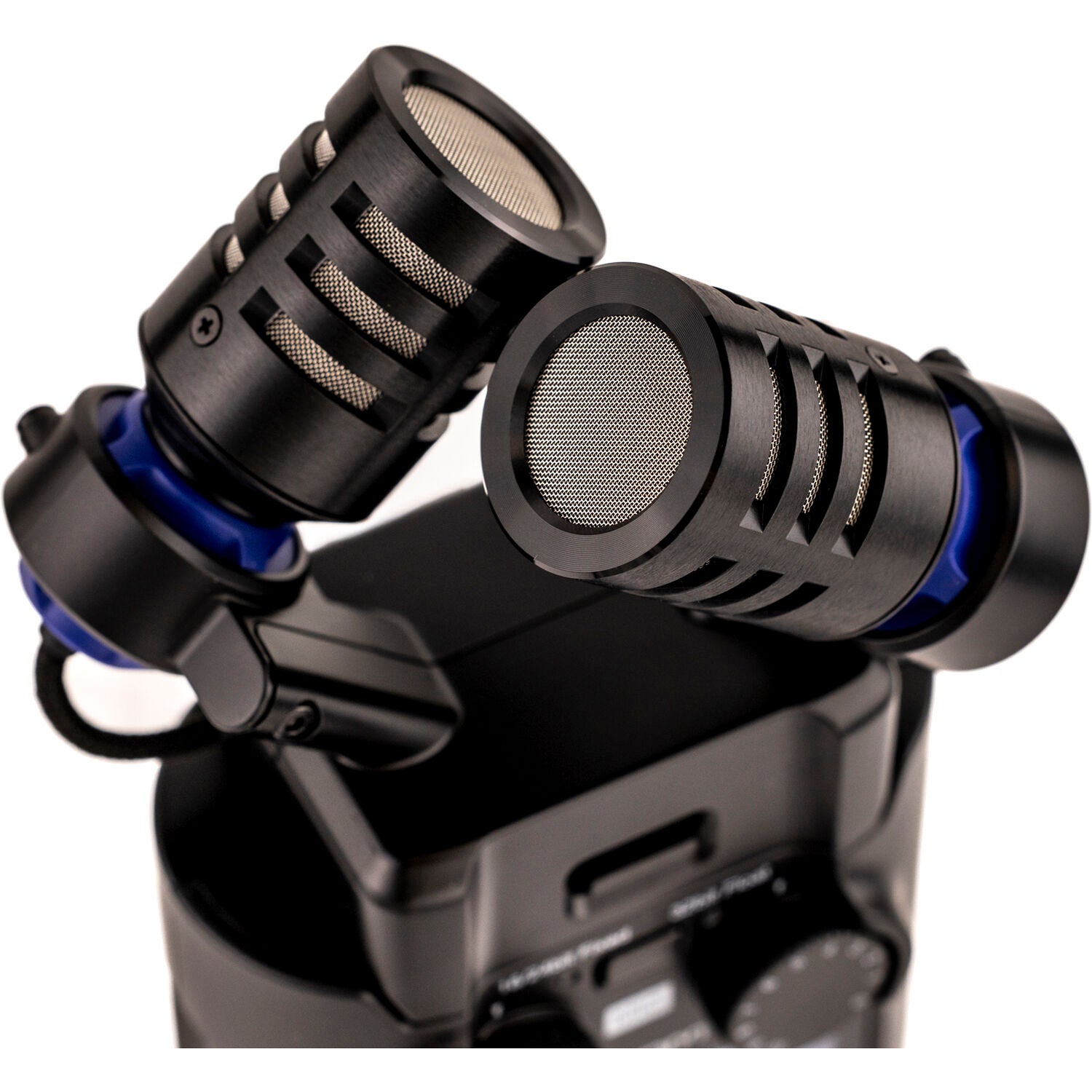

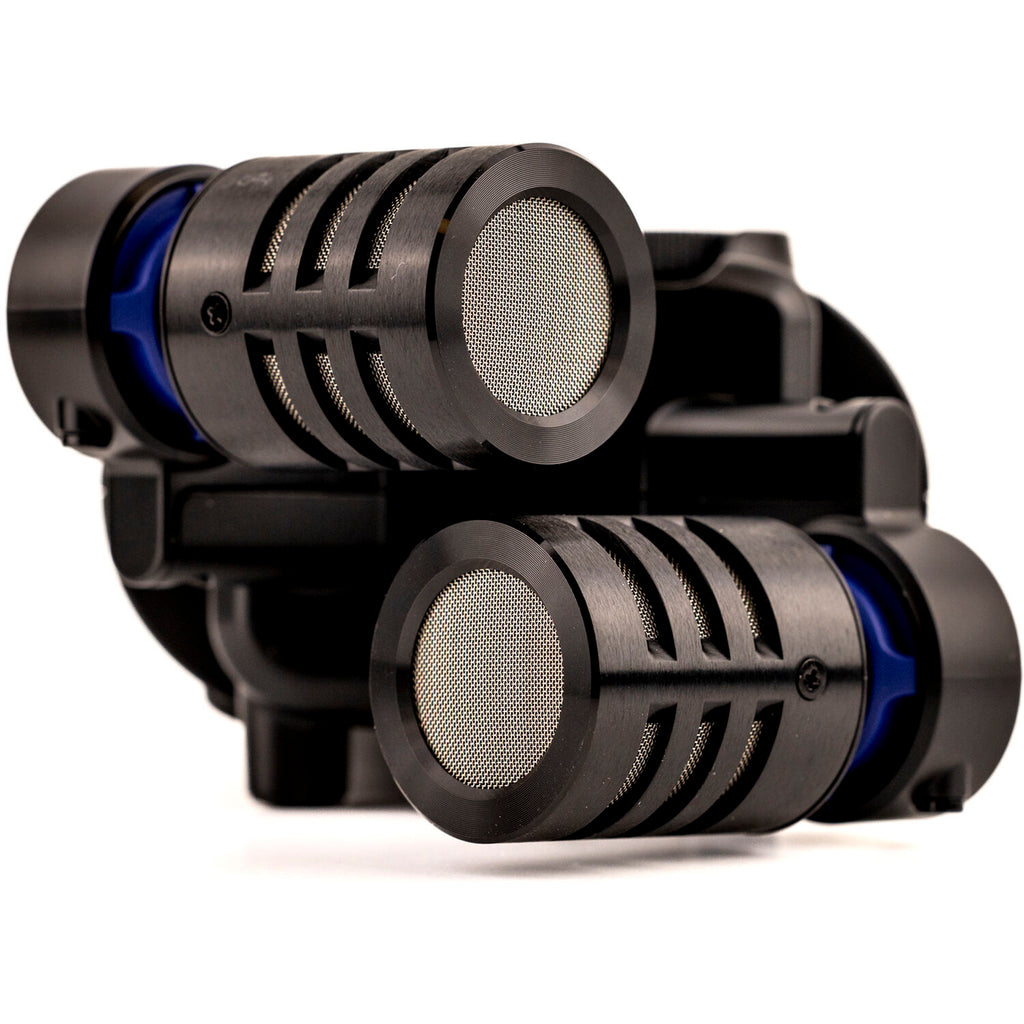

• Large XY microphones: Oversized capsules deliver detailed stereo imaging and high SPL handling.
• Four-track workflow: Record 4 isolated channels plus a stereo mix for flexible post-production.
• Pro-grade preamps: Low-noise design provides clean gain for dialog, ambience, or instruments.
• Capsule System compatibility: Swap the mic head to shotgun, extra inputs, and more as needs evolve.
• USB audio interface: 4-in/2-out operation for streaming or DAW work, with simultaneous card backup.
• Look-ahead limiter & filtering: Intelligent protection keeps peaks under control and rumble at bay.
• Timecode & sync ready: Supports external adapters for precise camera/recorder synchronization.

Customer Benefits

H5studio lets you travel light without sacrificing quality. Set it up in seconds, record safely in 32-bit float, and adapt to any scenario—from on-camera interviews to field sound design—using swappable capsules and interface mode. It’s a compact rig that scales with your projects.

Quick Specs

• Recording format: 16/24-bit & 32-bit float, up to 192 kHz
• Tracks: 4 isolated tracks + stereo mix

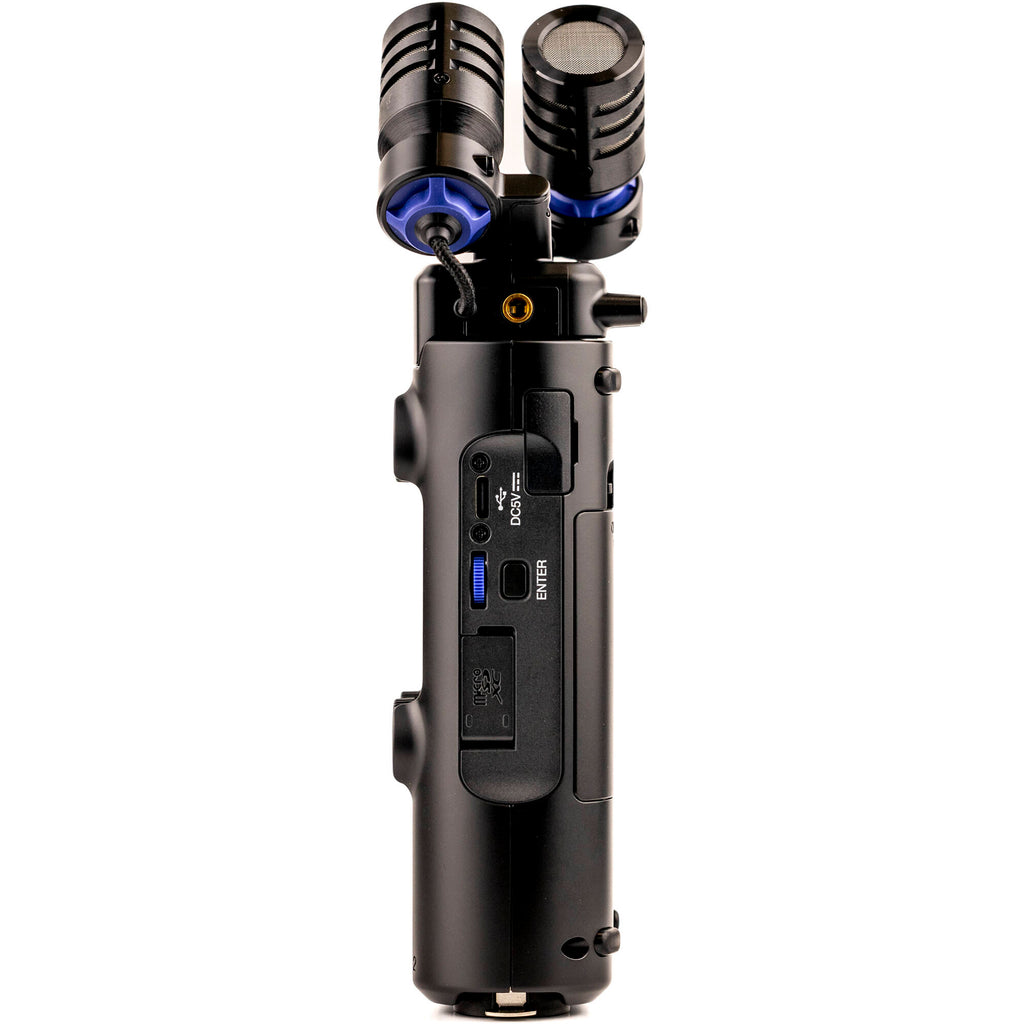

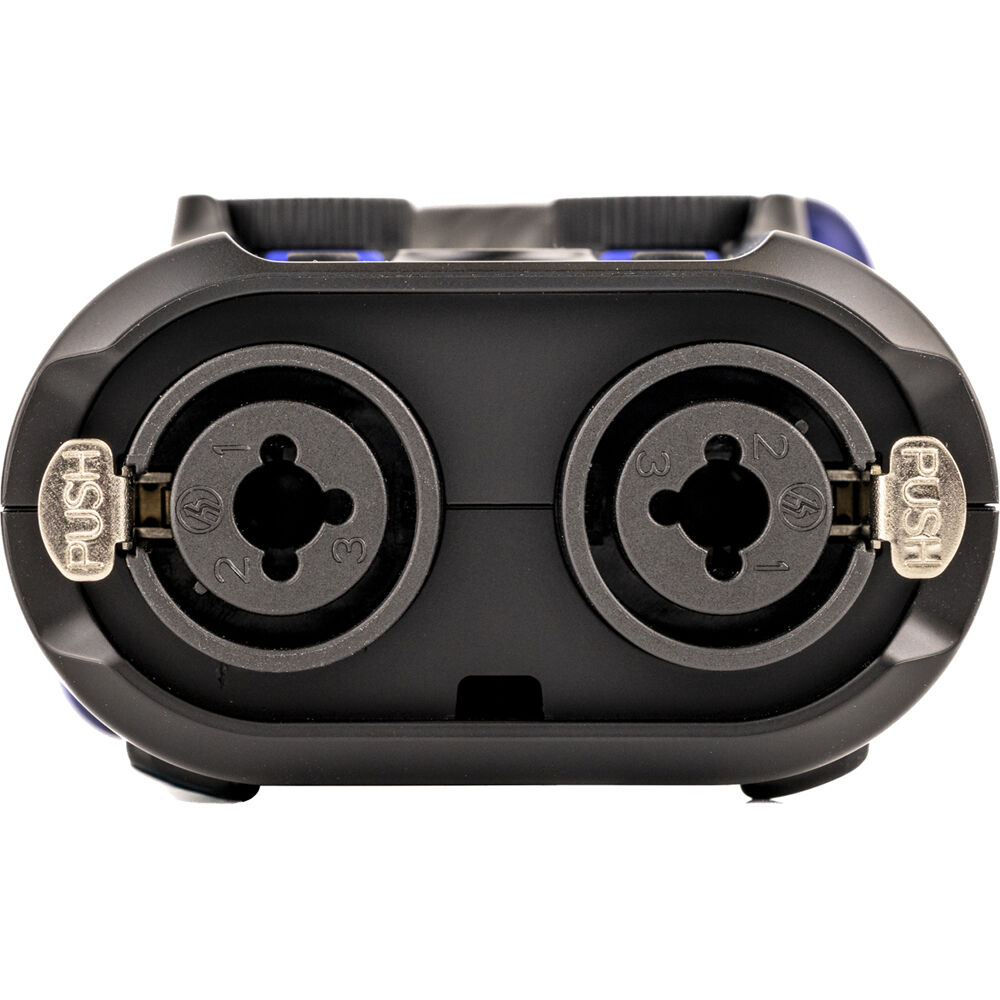

• Inputs: Built-in XY mics; 2 × XLR/TRS combo (mic/line, +48 V); 3.5 mm mic/line
• Outputs: 3.5 mm line out; 3.5 mm headphone; built-in speaker
• USB: USB-C, 4-in/2-out audio interface

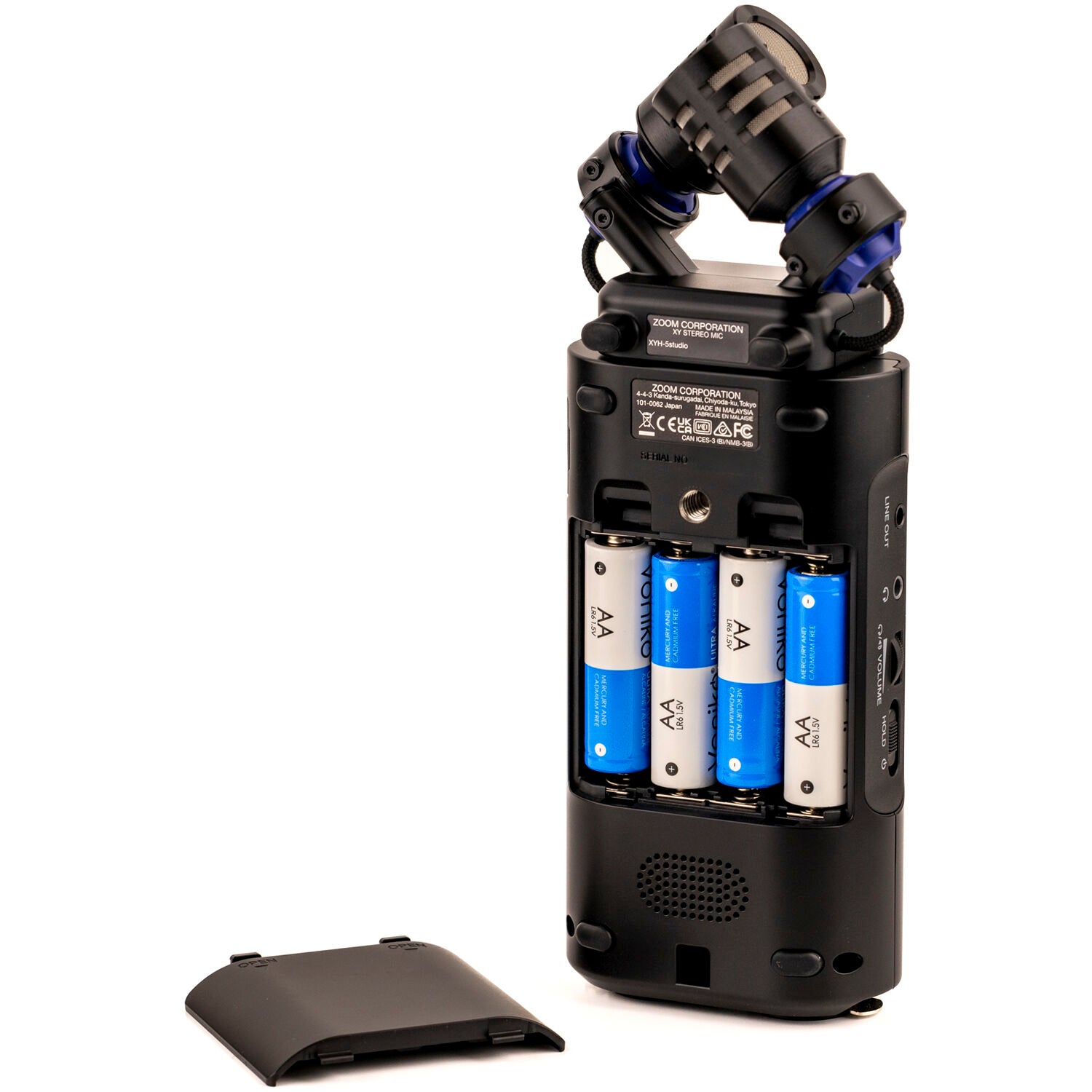

• Power: 4 × AA batteries (up to ~15 h), USB-C bus power, optional DC
• Storage: microSD/microSDHC/microSDXC
• Dimensions (H × W × D): 20.6 × 8.6 × 5.46 cm
• Weight: ~410 g (with batteries)

What’s in the Box

• Zoom H5studio recorder
• XY microphone capsule (pre-installed)
• USB-C cable
• Foam windscreen
• Quick start guide

Use Cases / Ideal For

On-camera interviews and documentaries, podcasting and voice-over, location music capture, sound effects and ambience recording, livestreaming and remote sessions via USB.

Compatibility

Works as a standalone recorder or 4-in/2-out USB interface with macOS, Windows, iOS, and Android. Supports interchangeable capsules and common camera/sync accessories for video workflows.

Pros & Cons

✅ Pros:

• 32-bit float safety net—no clipped takes
• Swappable capsules and 4-track flexibility
• Clean preamps and robust build for field use
• Interface mode with simultaneous card backup

⚠️ Cons:

• Advanced features may require brief setup learning
• External timecode support needs optional adapters

The Zoom H5studio combines portability with professional headroom and workflow flexibility—capture confident, release-ready audio anywhere with Soundium.
